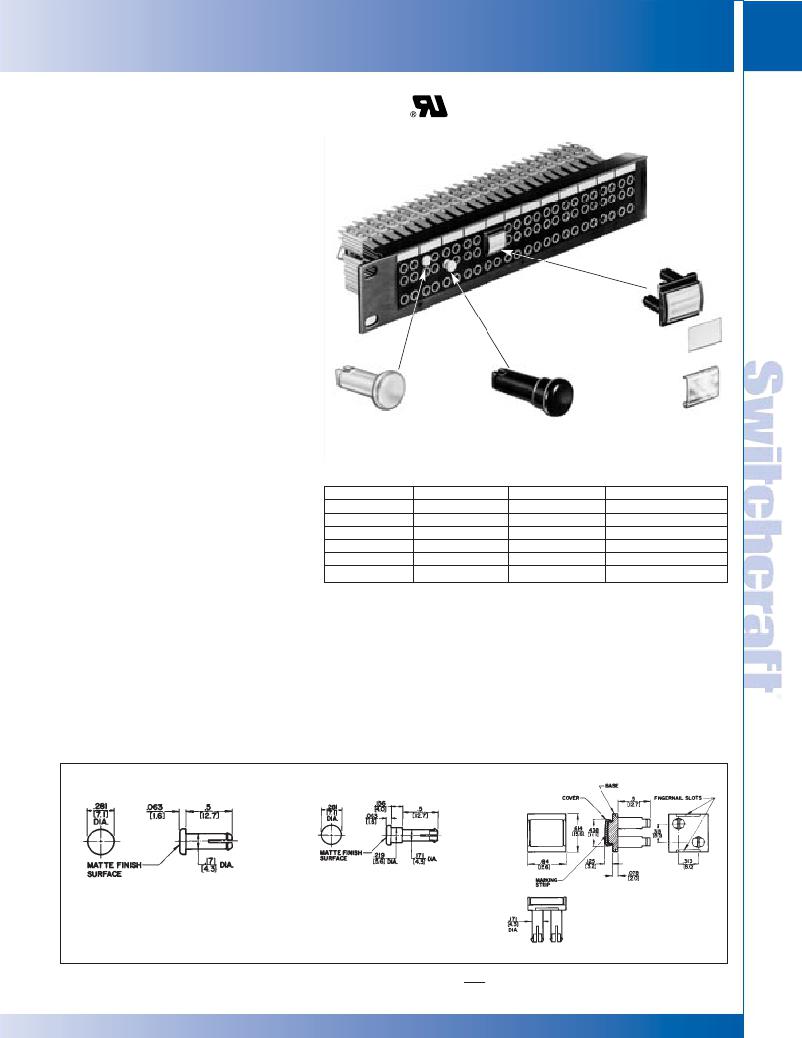

TT ( BANTAM ) CIRCUIT GUARD PLUGS

JACK PANELS

FAX: 773 792-2129

* Please visit the product pages on our website for the most up-to-date product information

TT ? (BANTAM) CIRCUIT GUARD PLUGS

APPLICATION

Circuit guard plugs snap into TT-Jax ? (bantam)

jacks eliminating accidental or unauthorized

insertion of a plug into a critical circuit. The circuit

guards plugs do not actuate the jack springs.

These plugs seal the jack bushing and provide

an additional means of circuit identification.

Circuit guard plugs are available in three

233

different designs: Series TT512, Series TT513

and Series TT514. All three designs are molded

thermoplastic and are available in the following

colors: red, black, green, blue, white or yellow.

SERIES TT512

TT512 circuit guard plugs cover an individual

jack opening and insert to an virtually flush

position with the front panel.

Base

Marking Strip

SERIES TT513

TT513 circuit guard plugs are similar to the

Series TT512 except the button extends

.219" from the front of the panel for easier

Series TT512

Series TT513

Cover

Series

514

removal.

SERIES TT514

TT514 circuit guard plugs cover both the IN and

OUT jacks of two adjoining circuits while leaving

the monitor jacks exposed for circuit testing.

The four jack circuit guard plugs also include a

matte finish white plastic marking strip and

a clear extruded plastic window for additional

designation.

Part Number

TT5121

TT5122

TT5123

TT5124

TT5125

TT5128

Part Number

TT5131

TT5132

TT5133

TT5134

TT5135

TT5138

Part Number

TT5141*

TT5142*

TT5143*

TT5144*

TT5145*

TT5148*

Color

Red

Black

Green

Blue

White

Yellow

SPECIFICATIONS

TT512 and TT513: Molded thermoplastic in colors.

TT514: Base: Molded thermoplastic in colors.

Marking Strip: Matte finish white plastic.

Cover: Clear extruded plastic.

ORDERING

1. Order by part number from table.

2. Contact Switchcraft for any special order items.

*Includes base, marking strip & cover.

Series TT-512

Series TT-513

DIMENSIONS ARE FOR REFERENCE ONLY

Inch

(mm)

Series TT-514

SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
